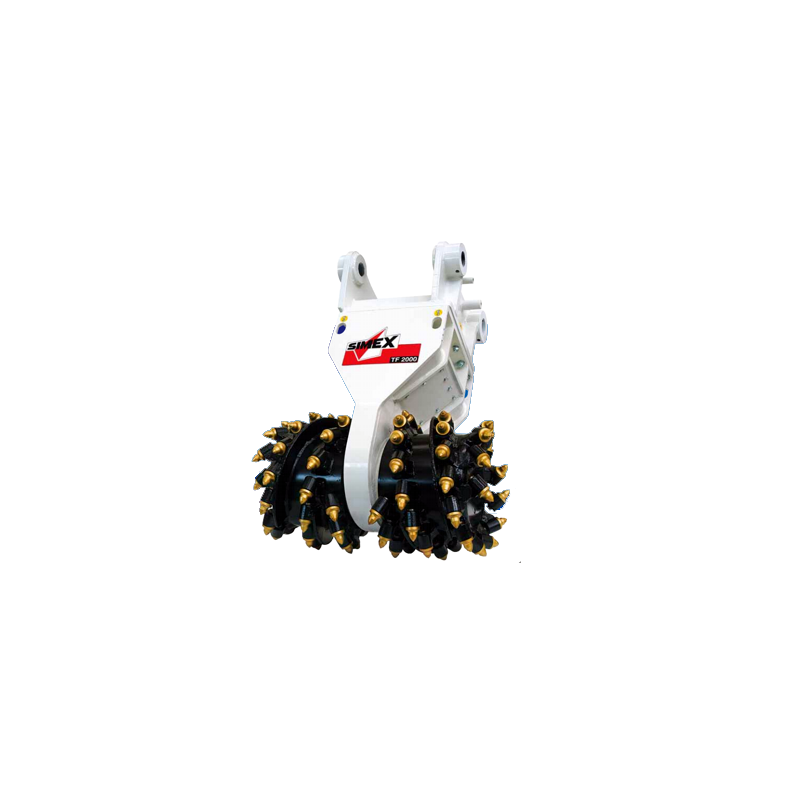

CUTTER HEADS TYPE TF2000
CUTTER HEADS TYPE TF2000
Shipping policies
Shipping methods are agreed directly with our sales service
The TF 2000 is designed for use where conventional digging systems are too weak and percussion tools have little effect.
Essential for small trenching jobs on hard, compact materials, profiling on rock or concrete walls, quarrying, small-scale demolition, dredging, tunnelling and finishing and large-scale excavation jobs.
Production of small diameter spoil without excessive vibration in surrounding area.
Cutter drums and tools with different features, designed to suit a range of job types and various materials requiring planing.
High displacement hydraulic piston motor to ensure HIGH PERFORMANCE and LOW SPEED/ HIGH TORQUE.
Patented by Simex.
No stress on drive shaft.
* The user is responsible for checking that the prime mover meets the equipment's specifications and weight requirements.
Width: 1100 mm
Milling speed: 60-100 giri/min
Hydraulic motor power: 112(152) kw (cv)
Required oil flow: 170-340 l/min
Required oil pressure: 400-210 BAR
Max. vertical force: 53,9 KN
Operating weight (std. drum): 2240 Kg
