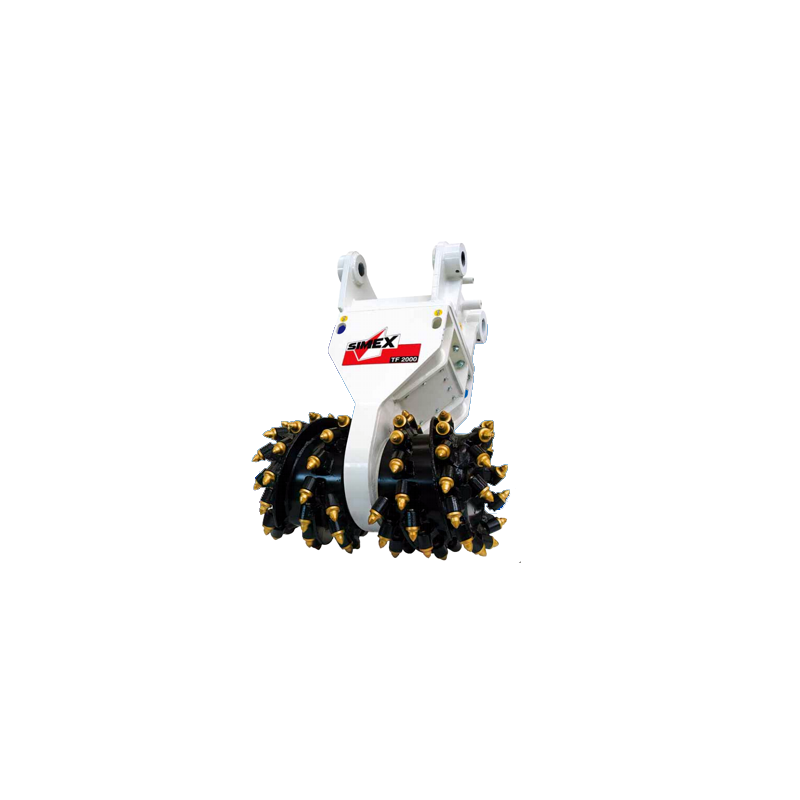

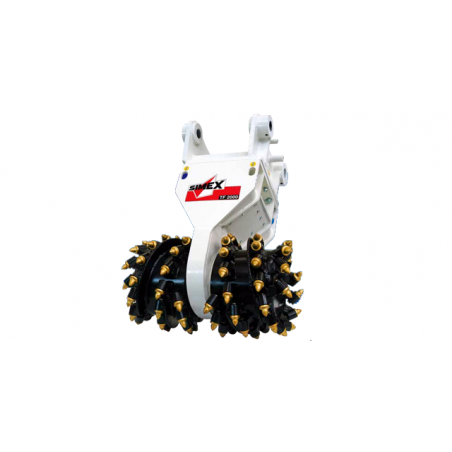

CUTTER HEADS TYPE TF200

The TF 200 is designed for use where conventional digging systems are too weak and percussion tools have little effect.

Essential for small trenching jobs on hard, compact materials, profiling on rock or concrete walls and small demolition jobs.

Production of small diameter spoil without excessive vibration in surrounding area.

Cutter drums and tools with different features, designed to suit a range of job types and various materials requiring planing.

High displacement hydraulic piston motor to ensure high performance and LOW SPEED/ HIGH TORQUE.

Patented by SIMEX.
No stress on drive shaft.

* The user is responsible for checking that the prime mover meets the equipment's specifications and weight requirements.

Width: 565 mm

Milling speed: 130-200 giri/min

Hydraulic motor power: 27(37) kw (cv)

Required oil flow: 45-80 l/min

Required oil pressure: 350-200 BAR

Max. vertical force: 13,5 KN

Operating weight (std. drum): 300 Kg

Recommended Excav. weight*: 2,5-7 Ton
